024 . EBG - GARDUCHO BIOLOGICAL STATION [MourĂ£o, Portugal]
2002-2008

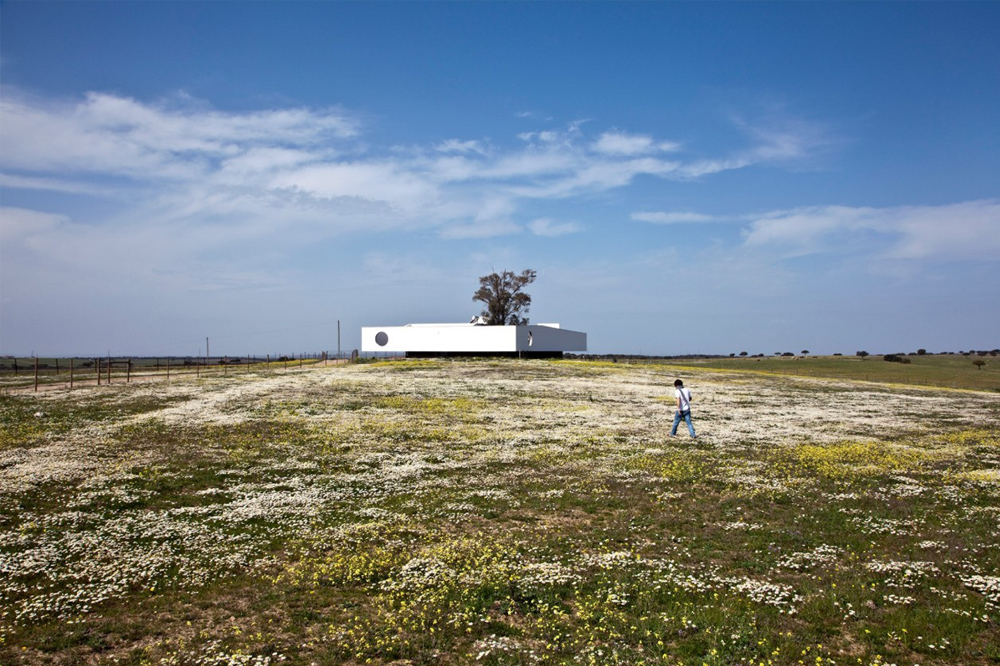

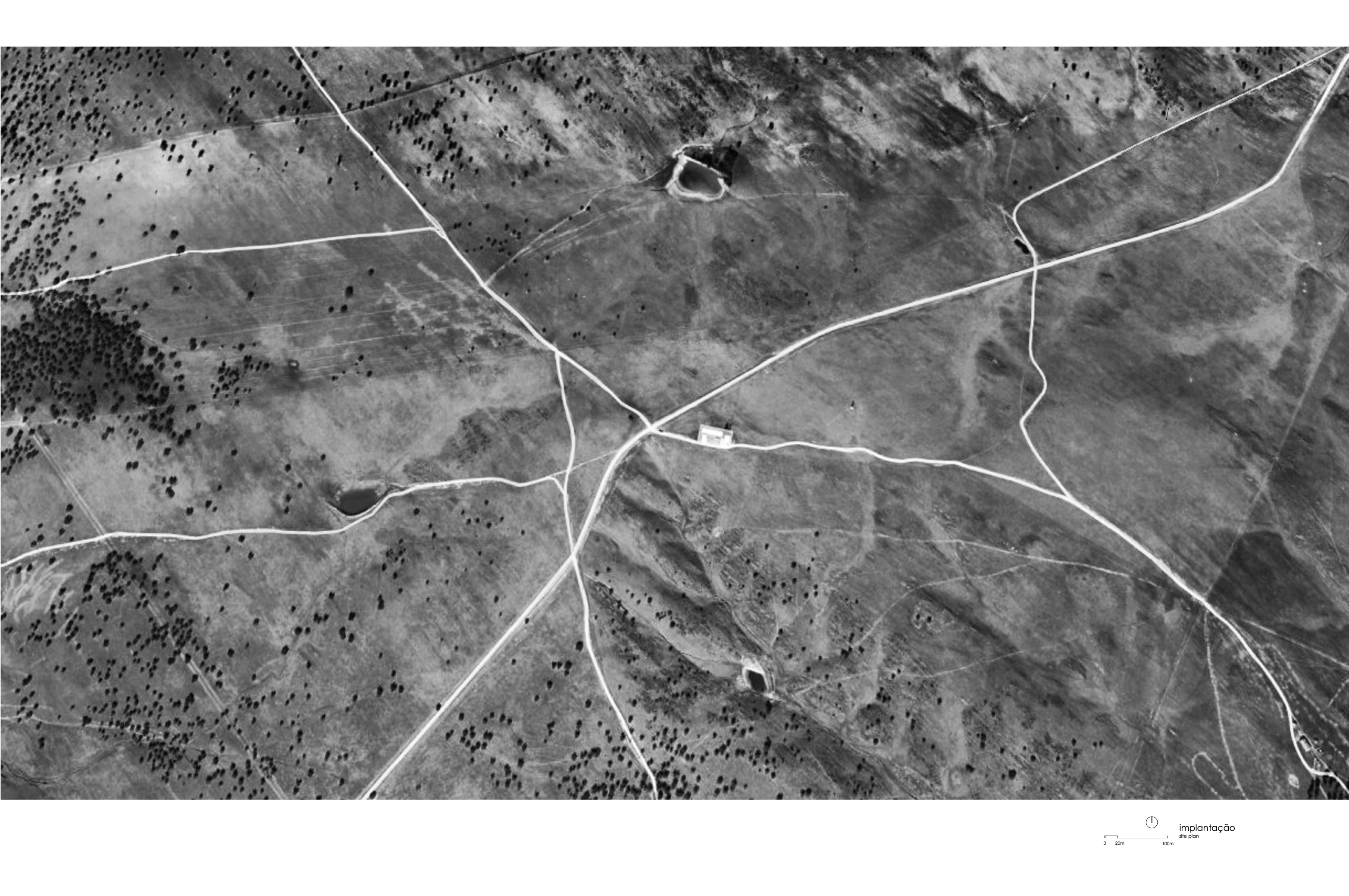

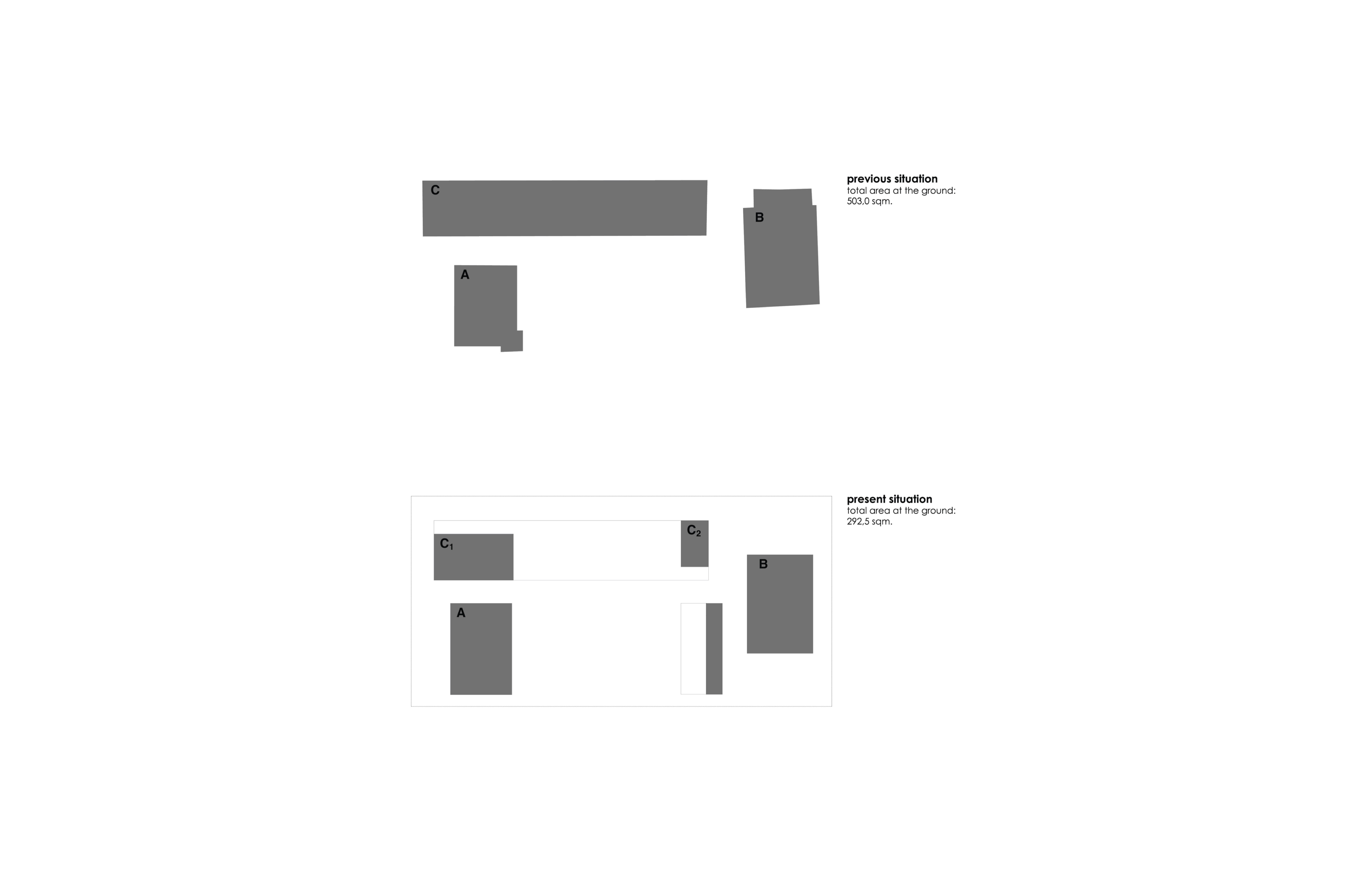

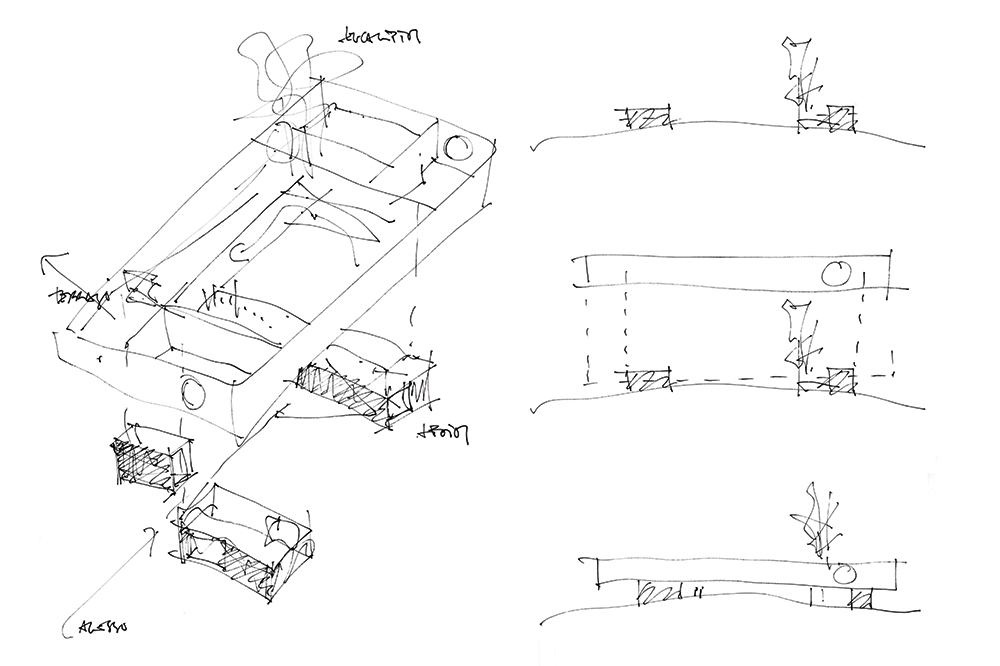

In a protected area, classified as Natura 2000 Network, the intervention looks for to organize the functional program transforming the three existing buildings in order to allow biggest area for the requested program, with lesser occupation of the ground. The buildings acts as elements of support of a structure that is raised above the land and keeps suspended, organizing a set of patios and pathways between the several functional parts, allowing to preserve the ground intact and permeable.

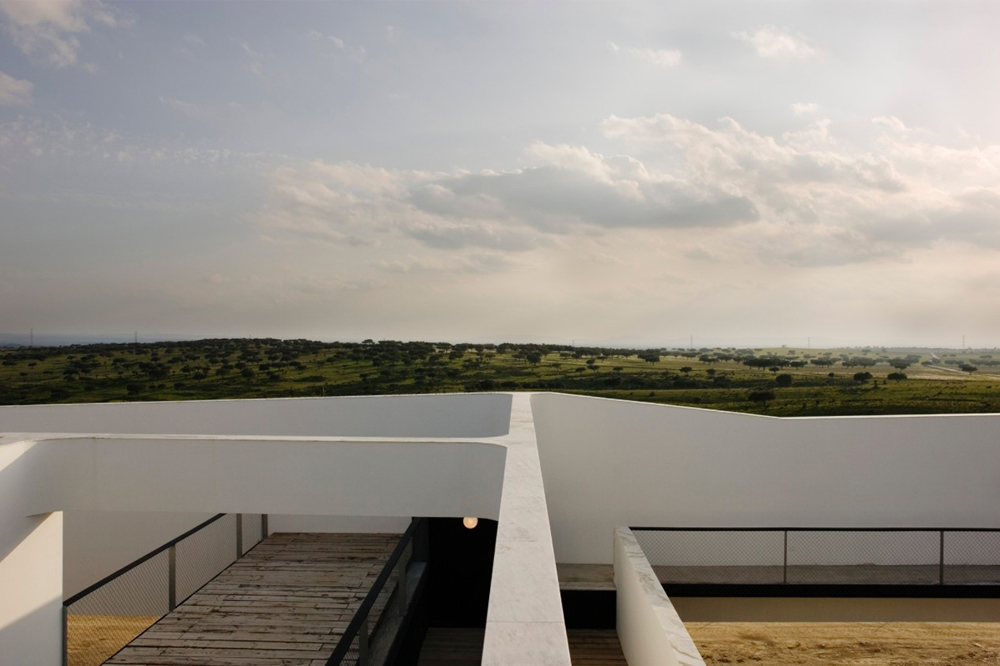

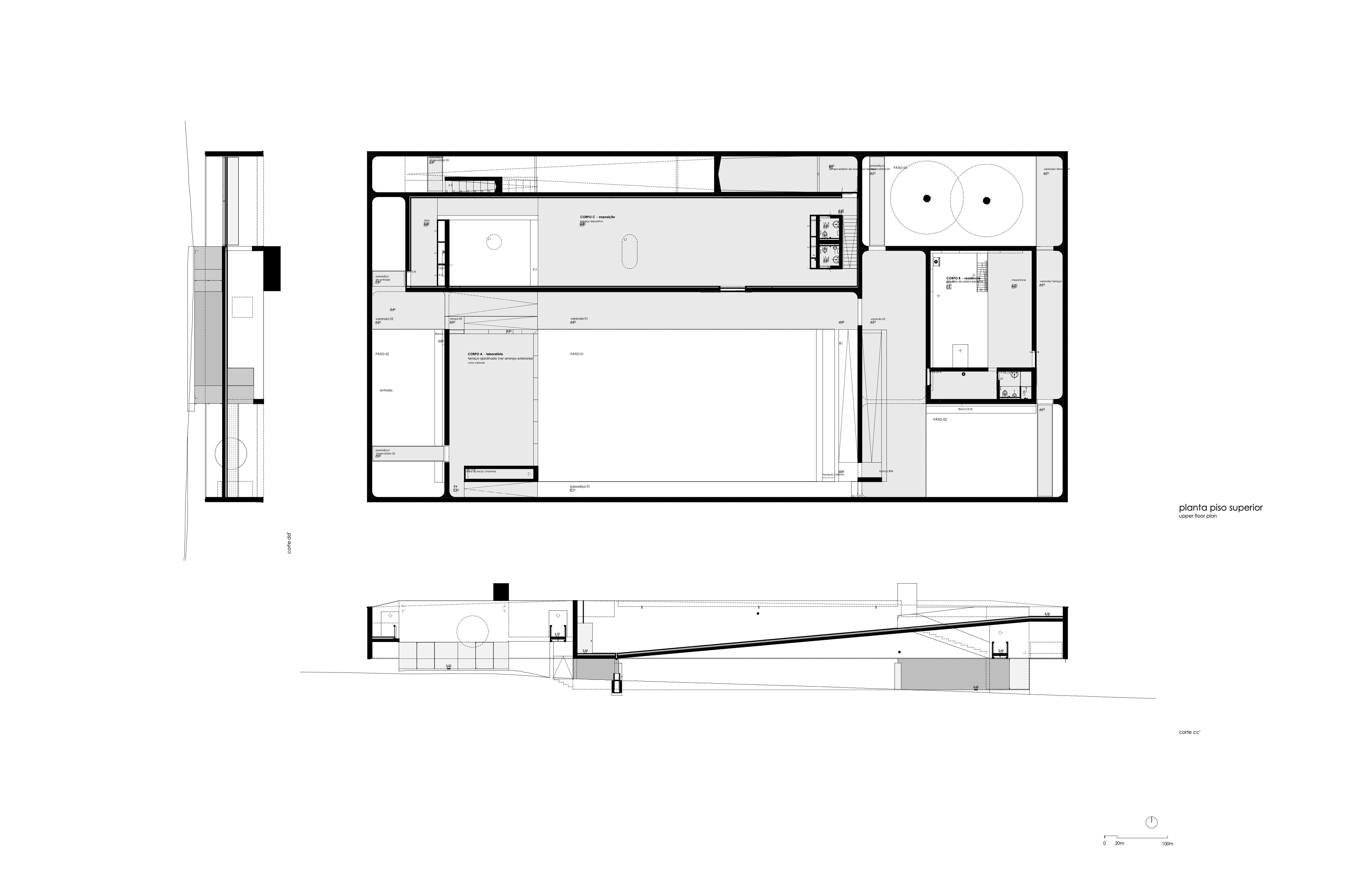

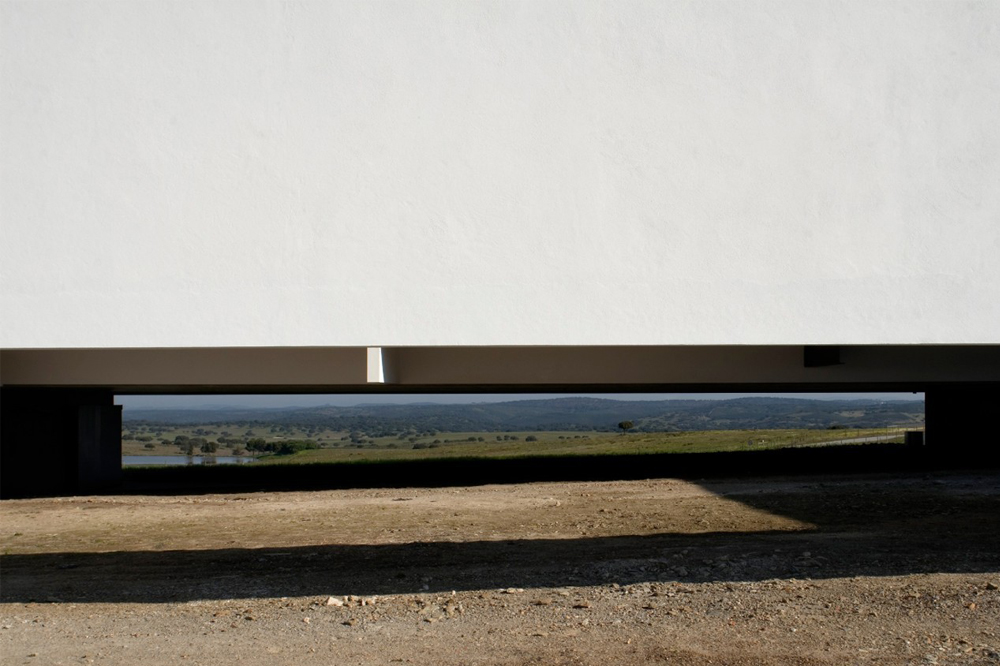

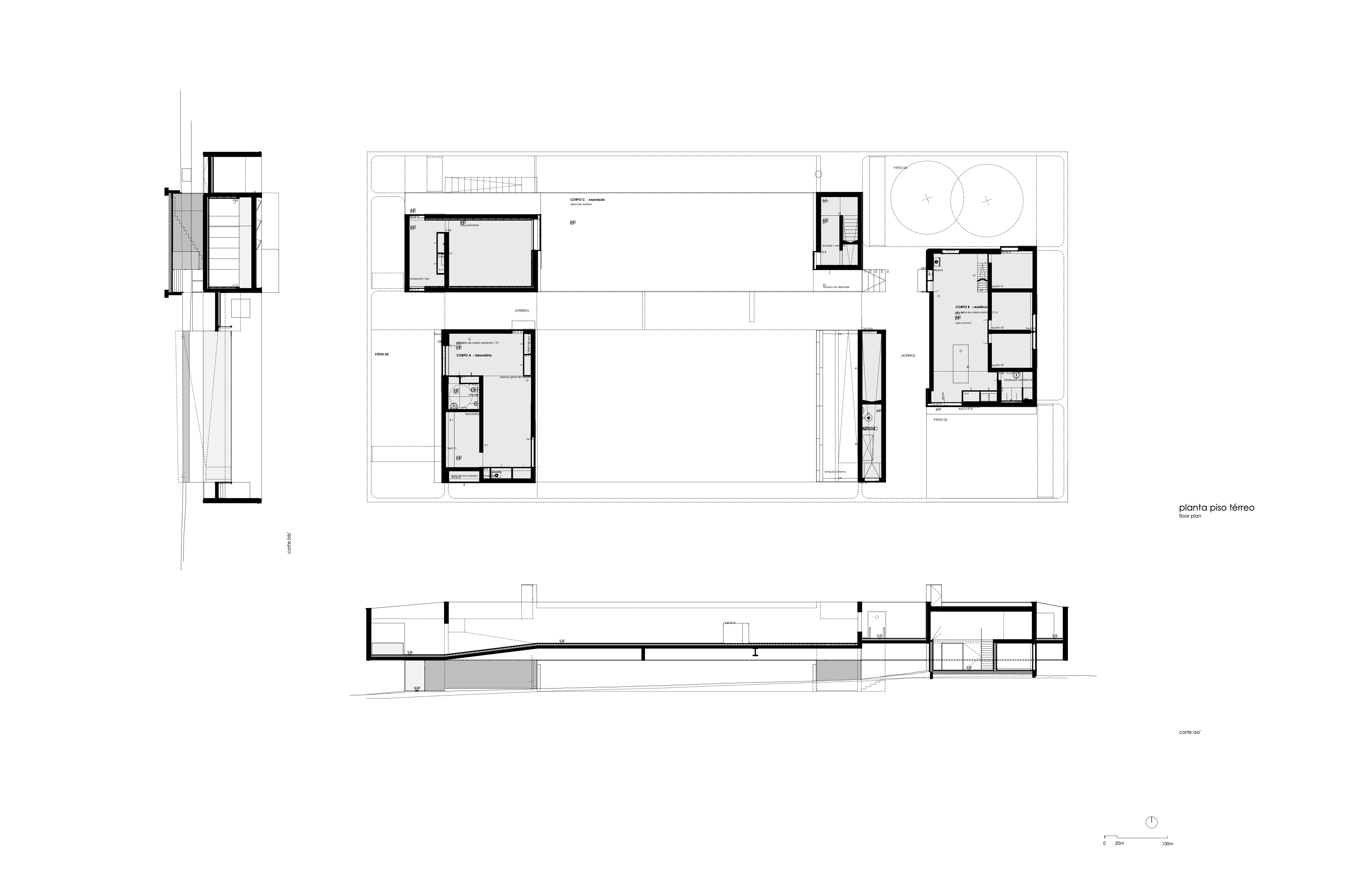

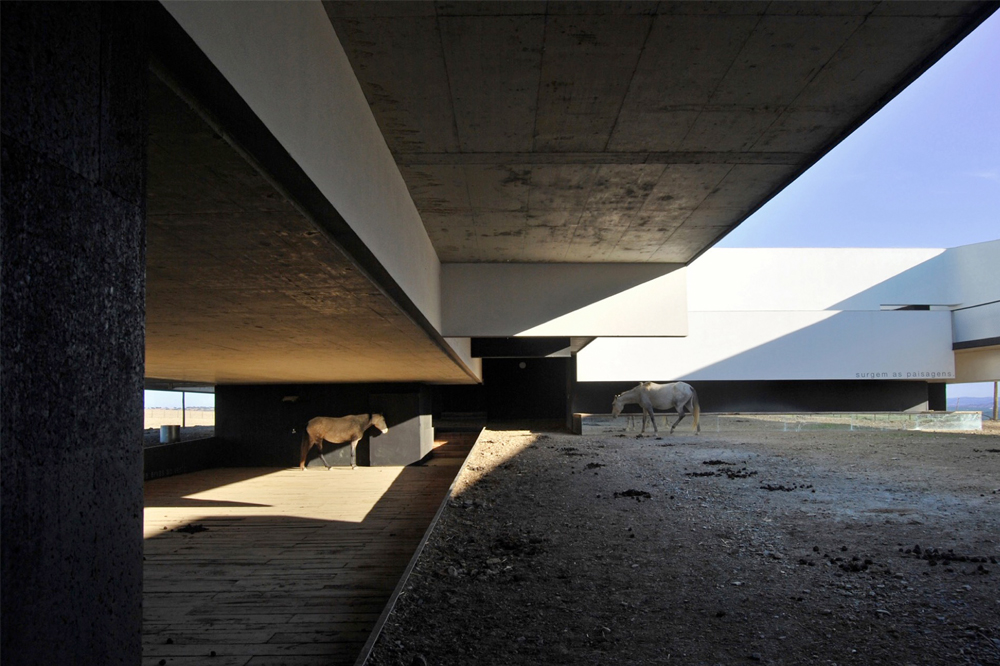

The construction is suspended a meter above the more raised quota of the land, defining private patios around the building of the residence and designing and entrance, on the opposite side of the 55 x 27,5 meters rectangle, where the land became lower. The center of the set is marked by a bigger patio, which organizes the other buildings, covered exterior spaces and pathways of the station, around it. At the ground, the suspended plans fit long horizontal views of the surrounding landscape. Because of it’s extreme isolation, the station as to remain self-suficient in terms of energy and water supplies, what it is possible due to the photovoltaic panels set in the roofs, and by a deposit that stores the rainwater.

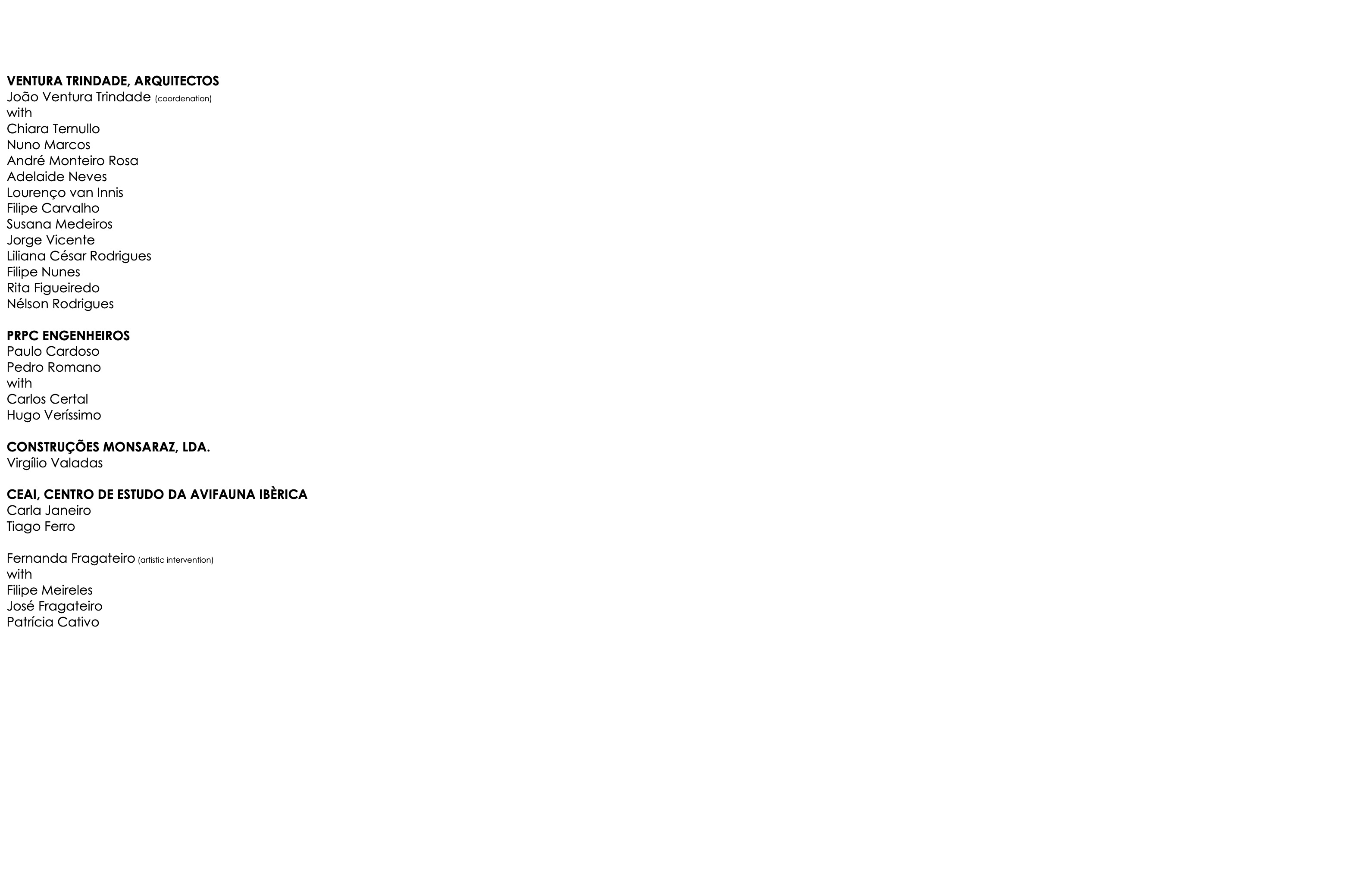

CREDITS



Architect: VENTURA TRINDADE, architects/ João Maria Trindade

Design team: Chiara Ternullo, Nuno Marcos, André Monteiro Rosa, Adelaide Neves, Lourenço van Innis, Filipe Carvalho, Susana Medeiros, Jorge Vicente, Liliana César Rodrigues, Filipe Nunes, Rita Figueiredo, Nélson Rodrigues



Structural engineering: PRPC – engineers (structure, hydraulic and coordination of infrastucure), Paulo Cardoso, Pedro Romano with Hugo Veríssimo, Carlos Certal



Technical energy: João Mira, Rui Batista



Fernanda Fragateiro ( artistic intervention) with Filipe Meireles, José Fragateiro, Patrícia Cativo



Construction management: CONSTRUÇÕES MONSARAZ, LDA., Virgílio Valadas



Client: CEAI, CENTRO DE ESTUDO DA AVIFAUNA IBÈRICA, Carla Janeiro, Tiago Ferro
